Elium Lighting — adjustable small-aperture downlighting
One optical and mechanical language, every downlight in the ceiling — 2″, 3″ and 4″ across the range. Shipped from Los Angeles, California.
Start with the ceiling
Choose your size.
The line spans 2″, 3″ and 4″.
2″
The smallest downlight in the line — near-invisible in the ceiling plane.
3″
The workhorse size. Discreet, with serious output behind it.
4″
The classic size, with maximum adjustability across the range.
The range
Which family fits the project?
One optical and mechanical language, one trim vocabulary, one installation method — the difference between them is the ceiling condition and the output. Every family shares the same trim design language and optics, so the finished look is consistent from a single residence through a multifamily corridor or a hospitality project.
Residential
Best for new construction — the highest-lumen IC-rated platform in the range.
- Maximum output
- Up to 2,000 lm
- IC rating
- IC Airtight / R60 / Plenum Rated
- Housing height
- 4″–5.5″
- Application
- New Construction
Canless
Best for residential remodels, retrofits, or new construction that needs a shallow option — Canless requires less than 4″ of ceiling space.
- Maximum output
- Up to 950 lm
- IC rating
- IC rated
- Ceiling depth
- Under 4″
- Application
- New Construction / Remodel / Retrofit
Commercial
Best for new construction, remodel, or retrofit spec-grade commercial work — more output than a residential canless can deliver.
- Maximum output
- Up to 3,500 lm
- IC rating
- IC 1,500 lm / Non-IC 3,500 lm
- Ceiling depth
- Under 5″
- Application
- New Construction / Remodel / Retrofit
Tunable White
Best for spaces where the color itself needs to change through the day — hospitality, retail and circadian schemes.
- Maximum output
- Up to 1,250 lm
- IC rating
- IC Airtight / R60 / Plenum Rated
- Tuning ranges
- 1800K–4000K · 2700K–6500K
- Application
- New Construction
Double Head Canless
Best for lighting two different things from a single frame — a picture and a worktop, without installing two separate fixtures.
- Maximum output
- 1,900 lm total
- IC rating
- IC to 950 lm per head
- Ceiling depth
- Under 4″
- Application
- New Construction / Remodel / Retrofit
Double Head Commercial
Best for high-output commercial spaces that need two independently aimed fixtures from a single frame.
- Maximum output
- Up to 7,000 lm
- IC rating
- IC 3,000 lm / Non-IC 7,000 lm
- Ceiling depth
- Under 5″
- Application
- New Construction / Remodel / Retrofit
Downsizer™ Ring
Best for updating a dated, large-aperture downlight to Elium’s small aperture without opening the ceiling.
- Maximum output
- 1,000 lm
- Fits
- Existing 4″, 5″, 6″ and 8″ housings
- Ceiling work
- Drywall patching
- Application
- Retrofit
Commercial Downsizer™ Ring
Best for modernizing existing commercial frames on a renovation, with no new rough-in.
- Maximum output
- Up to 2,500 lm
- Fits
- Existing 4″, 5″, 6″, 7″ and 8″ frames
- Ceiling work
- Drywall patching
- Application
- Retrofit
Why Elium
One trim language, every size.
Round or square, flanged or flangeless, in white, black, bronze or haze — every Elium size draws from the same trim vocabulary, so the finished look carries across a project without exception. One optical and mechanical language runs underneath it, across every family and size, and every order ships from Los Angeles, California.
- One optical and mechanical language across every size and family.
- The same finished look, whichever install path the ceiling needs.
- Adjustable that can read as fixed — aim happens above the trim.
- Ships quickly from Los Angeles, California.

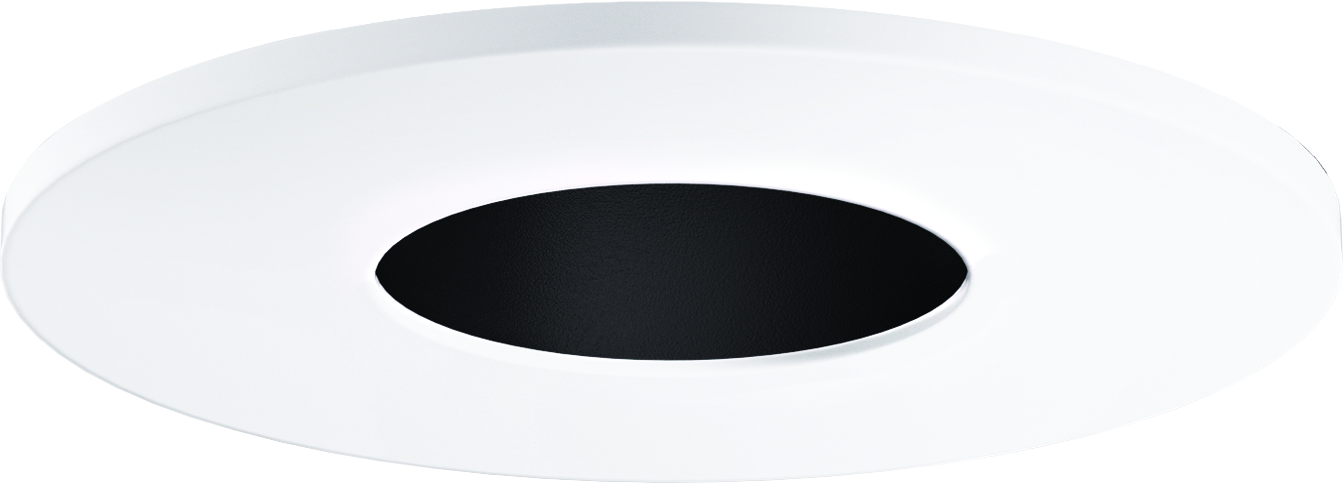

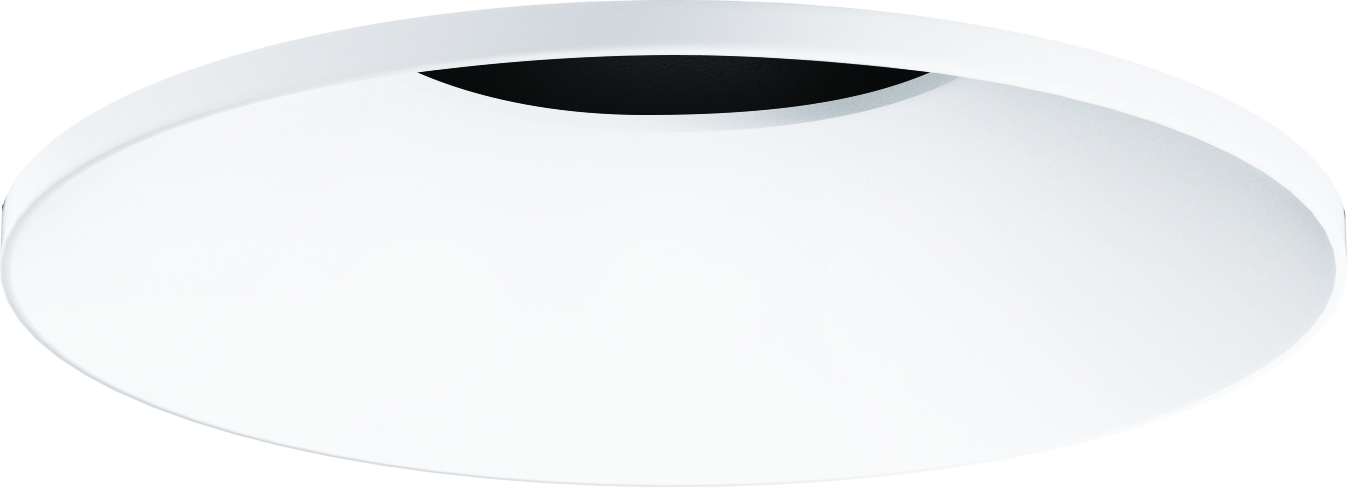

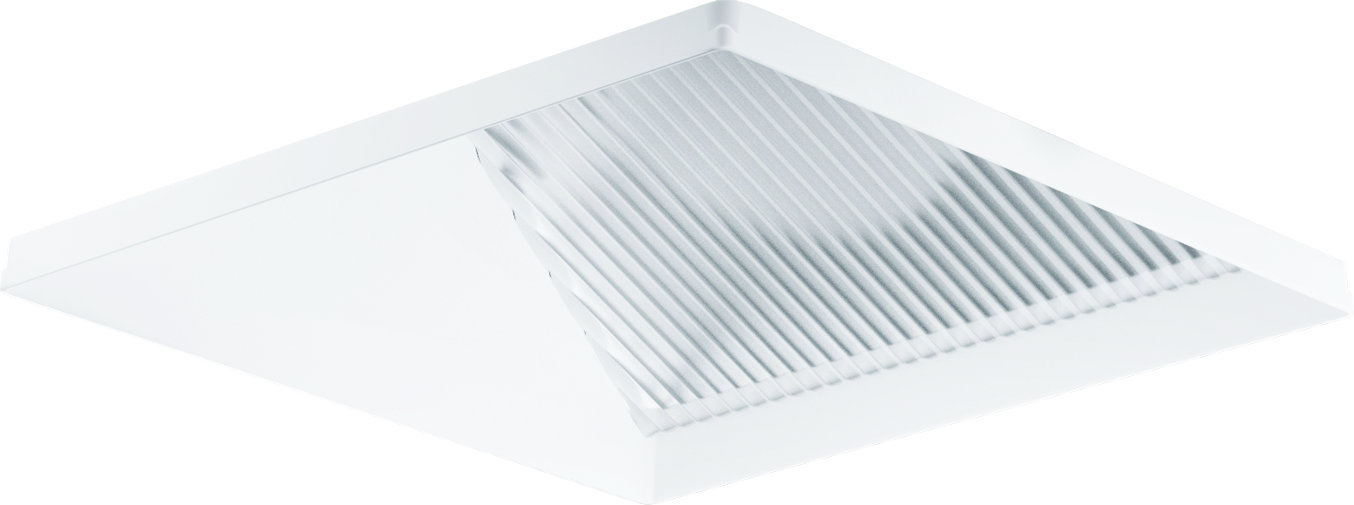

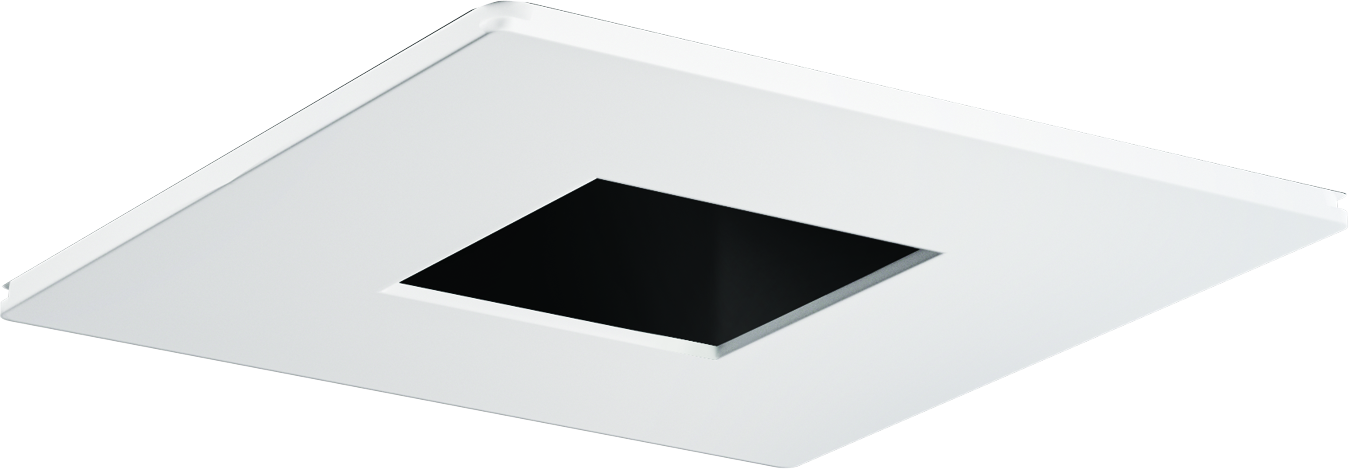

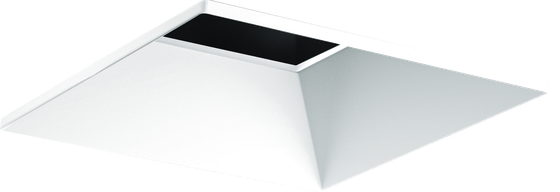

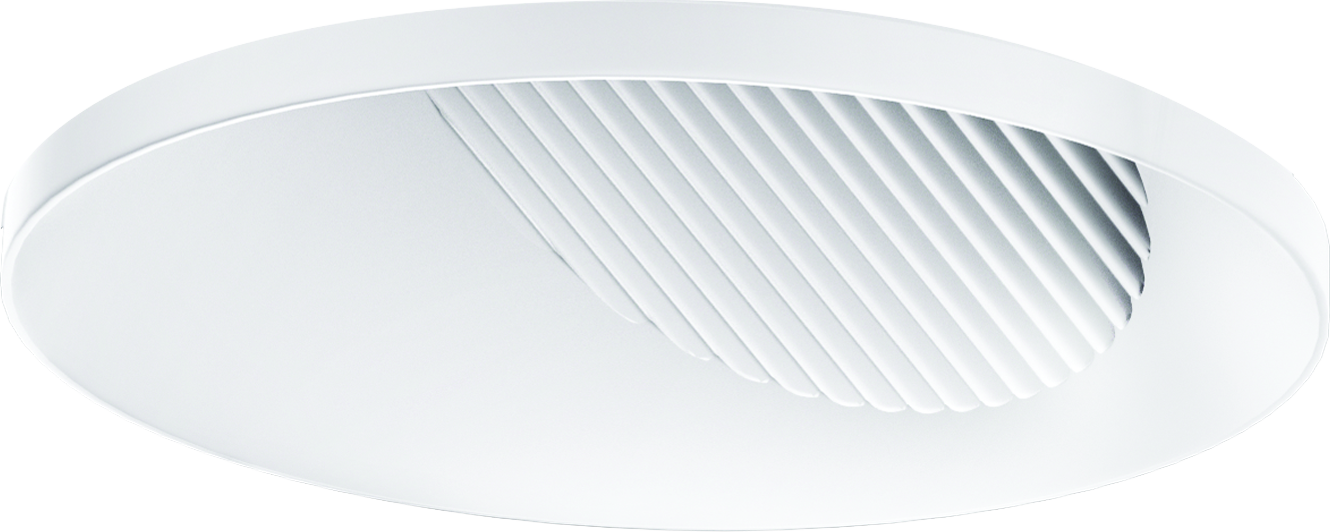

Round or square, flanged or flangeless, in white, black, bronze or haze — every option shown at the 3″ size. See all sizes
Documentation
Spec sheets, IES files, install guides.
Everything a submittal needs, in one place.
Talk to someone who knows the product.
Our agent network supports specifiers, designers and contractors on real projects — layout, photometrics, sample fixtures and lead times.
